Description

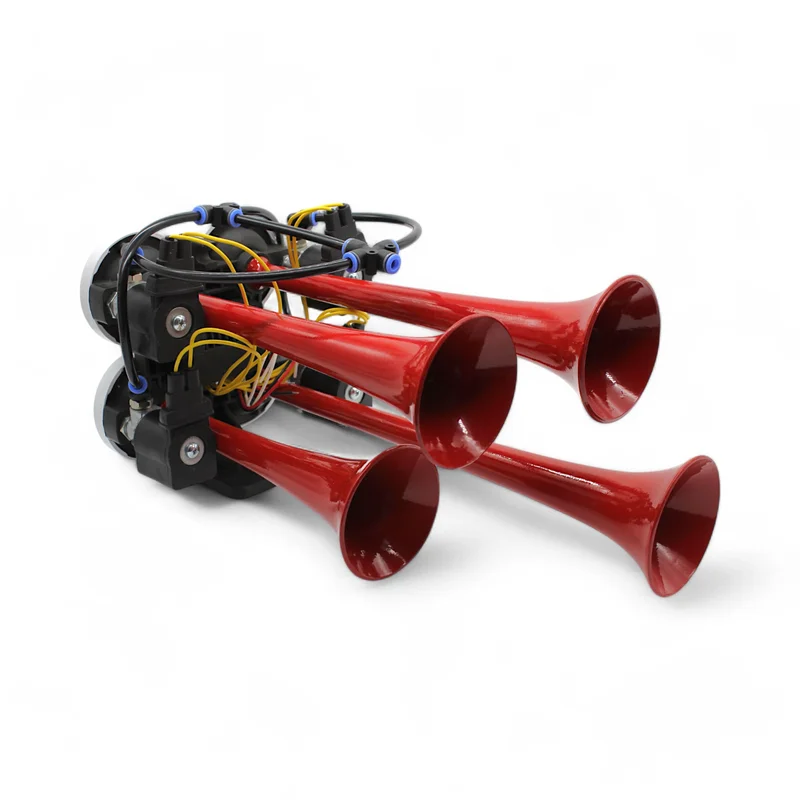

Four-pipe melody horn that plays two different melodies. Designed for performance and reliability, it delivers a sound level of up to 125 dB(A) ±5 dB at a distance of 2 metres.

Installation: Mounted using the brackets fitted to the horn. It is then supplied with constant compressed air, 6–10 bar via a 6 mm air hose, and controlled with 24V through the cables on the horn.

Voltage: 24V

Air pressure: 6–10 bar

Sound level at 2 metres: 125 dB(A) ±5 dB

Frequency: 349–392–440–532 Hz
